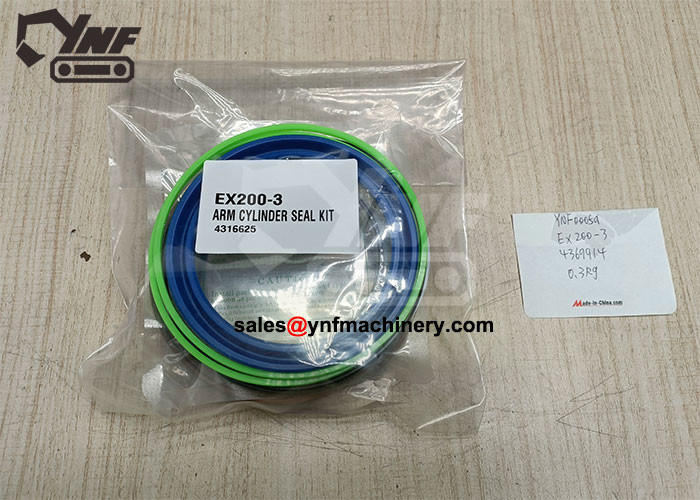

Excavator Arm Cylinder High Quality Seal Kit For Ex200-3 4316625,4286780
Main Information:
| Part Name | Arm Cylinder Seal Kit |
| Part Number | 4316625,4286780 |
| Machine Model | Ex200-3 |
| Condition | New |
| Warranty | Yes |
| Application | Excavator Parts |
| Material | NBR Rubber |
| Stock | Yes |
More Products:

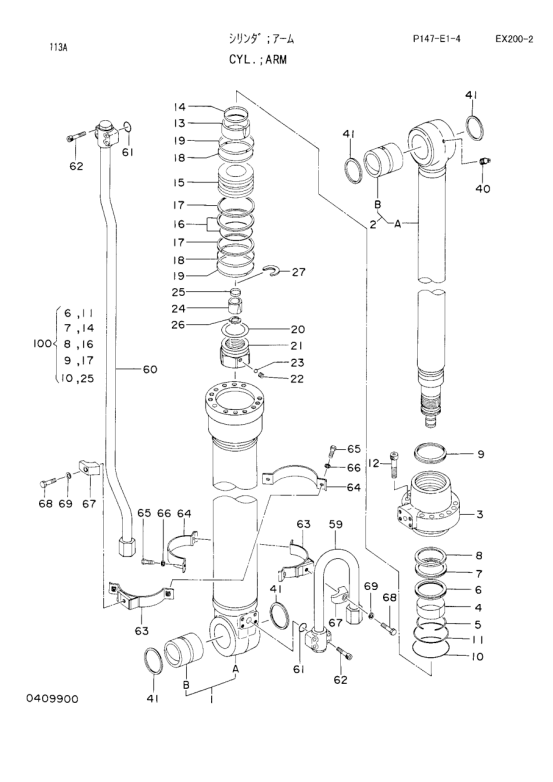

| 1-41. | 4286777 | [1] | CYL. (PIPELESS) | (PIPELESS) |
| 1 | 4286778 | [1] | TUBE;CYL. | |
| 1A. | 409901 | [1] | TUBE;CYL. | |
| 1B. | 409902 | [1] | BUSHING;PIN | |
| 2 | 4286779 | [1] | ROD;PISTON | |
| 2A. | 409903 | [1] | ROD;PISTON | |
| 2B. | 409902 | [1] | BUSHING;PIN | |
| 3 | 409904 | [1] | HEAD;CYL. | |
| 4 | 309204 | [1] | BUSHING | |
| 5 | 236905 | [1] | RING;RETAINING | |
| 6 | 409905 | [1] | RING | |
| 7 | 127207 | [1] | PACKING;U-RING | |
| 8 | 236919 | [1] | RING;BACK-UP | |
| 9 | 236920 | [1] | RING;WIPER | I 0481801 |
| 9 | 481801 | [1] | RING;WIPER | |
| 10 | A811125 | [1] | O-RING | |
| 11 | 409906 | [1] | RING;BACK-UP | |
| 12 | 409907 | [12] | BOLT;SOCKET | |
| 13 | 409908 | [1] | BRG.;CUSHION | |
| 14 | 409909 | [1] | SEAL | |
| 15 | 409910 | [1] | PISTON | |
| 16 | 254305 | [1] | RING;SEAL | |
| 17 | 409911 | [2] | RING;BACK-UP | |
| 18 | 409912 | [2] | RING | |
| 19 | 254309 | [2] | RING | |
| 20 | 309216 | [1] | SHIM | |
| 21 | 309213 | [1] | NUT | |
| 22 | 309011 | [1] | SCREW | |
| 23 | 111707 | [1] | BALL;STEEL | |
| 24 | 409913 | [1] | BRG.;CUSHION | |
| 25 | 409914 | [1] | SEAL | |
| 26 | 409915 | [2] | STOPPER | |
| 27 | 409916 | [1] | RING;RETAINING | |
| 40 | J75481 | [1] | FITTING;GREASE | |
| 41 | 409710 | [4] | RING;WIPER | Y 4067902 |
| 41 | 4067902 | [4] | SEAL;DUST | |
| 59 | 409917 | [1] | PIPE | |
| 60 | 409918 | [1] | PIPE | |
| 61 | 984614 | [2] | O-RING | |
| 62 | 309020 | [8] | BOLT;SOCKET | |
| 63 | 409919 | [2] | BAND | |
| 64 | 409920 | [2] | BAND | |
| 65 | 408815 | [4] | BOLT | |
| 66 | 325913 | [4] | WASHER | |
| 67 | 309219 | [2] | CLAMP;PIPE | |
| 68 | 237417 | [2] | BOLT | |
| 69 | 208516 | [2] | WASHER;SPRING | |
| 100 | 4286780 | [1] | KIT;SEAL | I 4316625 |
| 100 | 4316625 | [1] | KIT;SEAL | |
Why choose us:
Quality Controll
Competitive price
OEM Service
Experience more than 20 years' experience
Wholesaler We supply a wide range of spare parts for excavators
Main products:
Seal Series:
arm cylinder seal kit, Boom cylinder seal kit, Bucket cylinder seal kit, main pump seal kit, travel motor seal kit,
swing motor seal kit, control valve seal kit, center joint seal kit, track adjust seal kit, bushings,
floating seals, o-ring box, pusher, etc.
Engine parts:
cylinder heads, cylinder blocks, crankshafts, camshafts, connecting rods, water pumps, turbo chargers,
engine assys, fan blades, main bearing and connecting rod bearings, pistons, piston rings, liner kits, etc.
Hydraulic parts:
hydraulic cylinder assembly, gear pump assembly, hydraulic pump assembly, travel motor assembly, final drive assembly, swing motor assembly,
main valve assembly, service valves, gasket kits, etc.
Electric Parts:
solenoid valves, water sensors, pressure sensors, throttle motors, stop solenoid, controllers, monitors, etc.
Other Parts:
seal kits, bushings, floating seals, o-ring box, pushers, couplings, engine cushions, bearings, gears, fuel filter
oil filter, air filter, track link assy, front idler, carrier roller, hydraulic oil cooler, water tank, track link assy, etc.
About us:
Company Information
Guangzhou Xiebang Machinery CO., LTD (YNF Machinery) has both trading company and owned factory .Office and showroom are located in Guangzhou ,Panyu district. We produce and sell various Excavator Parts,such as coupling,Oil Seal,Hydraulic Parts,Excavator Rubber Parts,Excavator Electric Parts,Excavator wearing Parts,Engine Parts,Excavator Filters,Excavator Gears,Bearings,Excavator A/C Parts,Excavator Undercarriage Parts and Some air compressor couplings.
Products Show:
Product Tags:
|
|
Excavator Arm Cylinder Seal Kit For Ex200-3 4316625 4286780 Images
|
